In the fast-paced world of product development, the ability to quickly transform ideas into tangible models is essential. Two terms often encountered in this context are 3D Printing and Rapid Prototyping. While they are sometimes used interchangeably, they represent distinct concepts with unique applications, technologies, and benefits. For manufacturers, engineers, designers, and businesses seeking OEM solutions, understanding the differences between these two is crucial for choosing the right approach for their projects.
This article explores the definitions, technologies, processes, advantages, and applications of 3D Printing and Rapid Prototyping. It also provides practical insights and answers to common questions to help you make informed decisions for your manufacturing needs.
Rapid Prototyping is a group of techniques used to quickly fabricate a scale model or part using three-dimensional computer-aided design (CAD) data. The primary goal is to accelerate the product development cycle by enabling designers and engineers to test ideas, validate concepts, and identify design flaws early.
- Speed: Significantly reduces the time from concept to prototype.
- Flexibility: Allows for design iterations and modifications without high costs.
- Material Variety: Supports a wide range of materials, including plastics, metals, and composites.
- Process Diversity: Includes multiple manufacturing processes, such as CNC machining, injection molding, and 3D printing.
1. Design: Create a digital model using CAD software.
2. Conversion: Convert the model into a format suitable for manufacturing (e.g., STL file).
3. Fabrication: Use a suitable manufacturing technique to create the physical prototype.
4. Testing: Evaluate the prototype for form, fit, and function.
5. Iteration: Refine the design based on feedback and repeat the process if necessary.
Rapid Prototyping is not limited to a single technology; rather, it is an umbrella term that encompasses various methods aimed at speeding up the prototype creation process. This flexibility allows manufacturers to select the most suitable technique based on the prototype's purpose, required material properties, and budget constraints.
3D Printing, also known as additive manufacturing, is a specific process within the broader category of Rapid Prototyping. It involves creating three-dimensional objects by adding material layer by layer, directly from digital files.
- Additive Process: Builds objects by adding material, minimizing waste.
- Complex Geometry: Capable of producing intricate shapes and internal structures.
- Customization: Ideal for producing unique or low-volume parts.
- Accessibility: Widely available, from desktop printers to industrial systems.
1. Modeling: Develop a 3D model in CAD software.
2. Slicing: Convert the model into layers using slicing software.
3. Printing: The 3D printer deposits material layer by layer to form the object.
4. Post-Processing: Remove supports, smooth surfaces, and finish the part as needed.
3D Printing has revolutionized prototyping by enabling rapid iteration cycles and allowing designers to realize complex designs that are difficult or impossible to produce with traditional manufacturing methods. It is particularly valuable for producing detailed models, functional prototypes, and even end-use parts in some cases.
While 3D Printing is a subset of Rapid Prototyping, there are several important distinctions:
- Definition: Rapid Prototyping is a broad set of techniques for quickly creating prototypes, while 3D Printing is a specific additive manufacturing process.
- Scope: Rapid Prototyping includes subtractive methods like CNC machining and molding processes, whereas 3D Printing is exclusively additive.
- Material Range: Rapid Prototyping can involve a wider variety of materials, including metals and composites, depending on the method, while 3D Printing materials are generally limited to certain plastics, resins, and some metals.
- Application: Rapid Prototyping is often used for functional testing and manufacturing validation, while 3D Printing excels in producing complex geometries and custom parts quickly.
- Cost and Speed: 3D Printing is generally faster and more cost-effective for small, complex parts, but Rapid Prototyping methods like injection molding can be more suitable for larger volumes.
Understanding these differences helps businesses and engineers select the optimal approach depending on project requirements.
Rapid Prototyping includes a variety of technologies, each suited to different needs and materials:
A subtractive manufacturing process where material is precisely removed from a solid block using computer-controlled tools. CNC machining is ideal for creating functional prototypes with high dimensional accuracy and surface finish. It supports a wide range of materials, including metals and plastics, making it suitable for testing mechanical properties and assembly fit.
This process involves injecting molten material into a mold to produce parts. While typically used for mass production, injection molding can be employed in Rapid Prototyping for creating multiple prototype units or validating tooling designs. It is especially useful when prototypes need to mimic the final production parts closely.
Sheet metal prototyping involves cutting, bending, and assembling metal sheets to create parts such as enclosures, brackets, or structural components. This method is widely used in industries requiring metal prototypes to test mechanical strength or thermal properties.
As an integral part of Rapid Prototyping, 3D Printing offers the ability to quickly produce prototypes with complex geometries and intricate details. It is often the fastest method for initial concept models and design validation.
Several 3D Printing technologies are commonly used in prototyping and production:

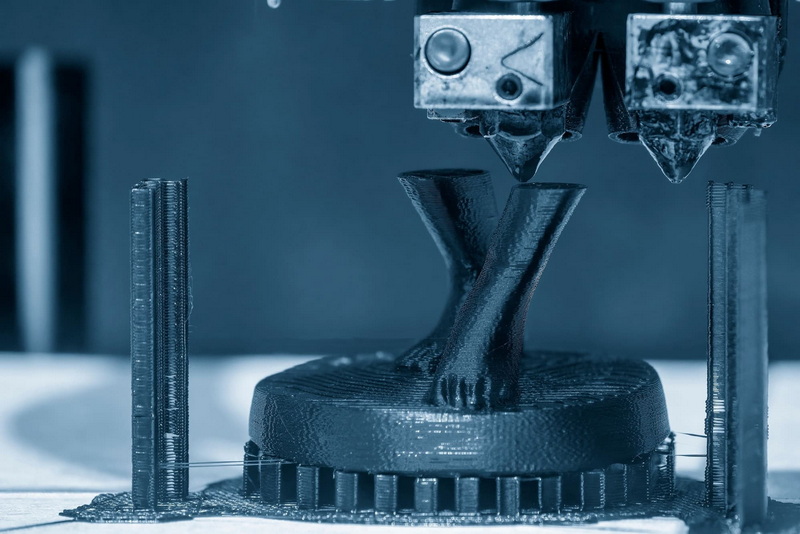

FDM works by melting and extruding thermoplastic filament layer by layer. It is one of the most accessible and cost-effective 3D printing methods, ideal for creating concept models and functional prototypes with moderate strength requirements.
SLA uses a laser to cure liquid resin into solid parts with high precision and smooth surface finish. It is preferred for detailed prototypes, dental models, and jewelry where surface quality and accuracy are critical.
SLS fuses powdered materials using a laser, producing strong, durable parts without the need for support structures. It is suitable for functional testing and low-volume production of complex geometries.
DMLS is a metal 3D printing process that sinters metal powder layer by layer to create fully dense metal parts. It is widely used in aerospace, automotive, and medical industries for producing lightweight, complex metal components.
- Product Development: Rapid Prototyping accelerates the design process by enabling quick creation and testing of prototypes.
- Engineering Validation: Functional prototypes help verify mechanical performance, assembly, and ergonomics.
- Market Testing: Prototype models are used to gather customer feedback and refine designs before mass production.
- Manufacturing Validation: Prototypes can test manufacturability, assembly processes, and tooling designs.
- Custom Components: 3D Printing excels at producing one-off or customized parts.
- Low-Volume Production: It enables cost-effective manufacturing of small batches without the need for tooling.
- Educational Models: 3D printed models serve as effective teaching aids and demonstration tools.
- Medical Devices: Custom implants, prosthetics, and anatomical models are increasingly produced using 3D Printing.
- Accelerates innovation by allowing fast design iterations.
- Reduces development costs by identifying issues early.
- Enhances communication among design, engineering, and marketing teams.
- Supports a wide range of materials and processes for diverse prototyping needs.
- Material limitations compared to final production parts.
- Surface finish and strength may differ from mass-produced components.
- Initial setup costs for some technologies can be high.
- Minimal material waste due to additive manufacturing.
- Ability to produce complex geometries not possible with traditional methods.
- Quick turnaround for small batches and prototypes.
- Customization potential for unique or personalized parts.
- Limited material choices compared to traditional manufacturing.
- Surface finish may require post-processing for some applications.
- Print speed can be slow for large or highly detailed parts.
- Mechanical properties may not always match those of injection-molded or machined parts.
When deciding between 3D Printing and other Rapid Prototyping methods, consider the following factors:
- Project Requirements: Assess the complexity, accuracy, material, and quantity needed.
- Budget: Evaluate the costs associated with different prototyping processes.
- Timeline: Determine how quickly you need the prototype or part.
- End Use: Consider whether the prototype is for conceptual validation, functional testing, or final use.
For highly complex, customized, or low-volume parts, 3D Printing is often the preferred choice. For prototypes requiring specific materials, high strength, or surface finish, traditional Rapid Prototyping methods like CNC machining or injection molding may be more appropriate.
Understanding the distinctions between 3D Printing and Rapid Prototyping is essential for anyone involved in product development or manufacturing. While 3D Printing is a powerful tool within the Rapid Prototyping toolkit, Rapid Prototyping encompasses a broader range of technologies and processes. By leveraging the right method for your specific needs, you can accelerate innovation, reduce costs, and bring high-quality products to market faster. Whether you require quick concept models, functional prototypes, or small batch production, selecting the appropriate prototyping technique is key to achieving your project goals efficiently.
Rapid Prototyping refers to a collection of techniques for quickly creating prototypes, including but not limited to 3D Printing. 3D Printing is a specific additive manufacturing process that builds objects layer by layer.
While 3D Printing is ideal for rapid prototyping and low-volume production, it is generally not as cost-effective as traditional manufacturing methods like injection molding for large-scale production.
Rapid Prototyping supports a wide range of materials, including plastics, metals, composites, and even ceramics, depending on the chosen process.
Yes, Rapid Prototyping can produce functional prototypes for testing form, fit, and function. The suitability depends on the process and material used.
Rapid Prototyping accelerates product development by enabling fast design iterations, early detection of design flaws, and improved communication among stakeholders.
