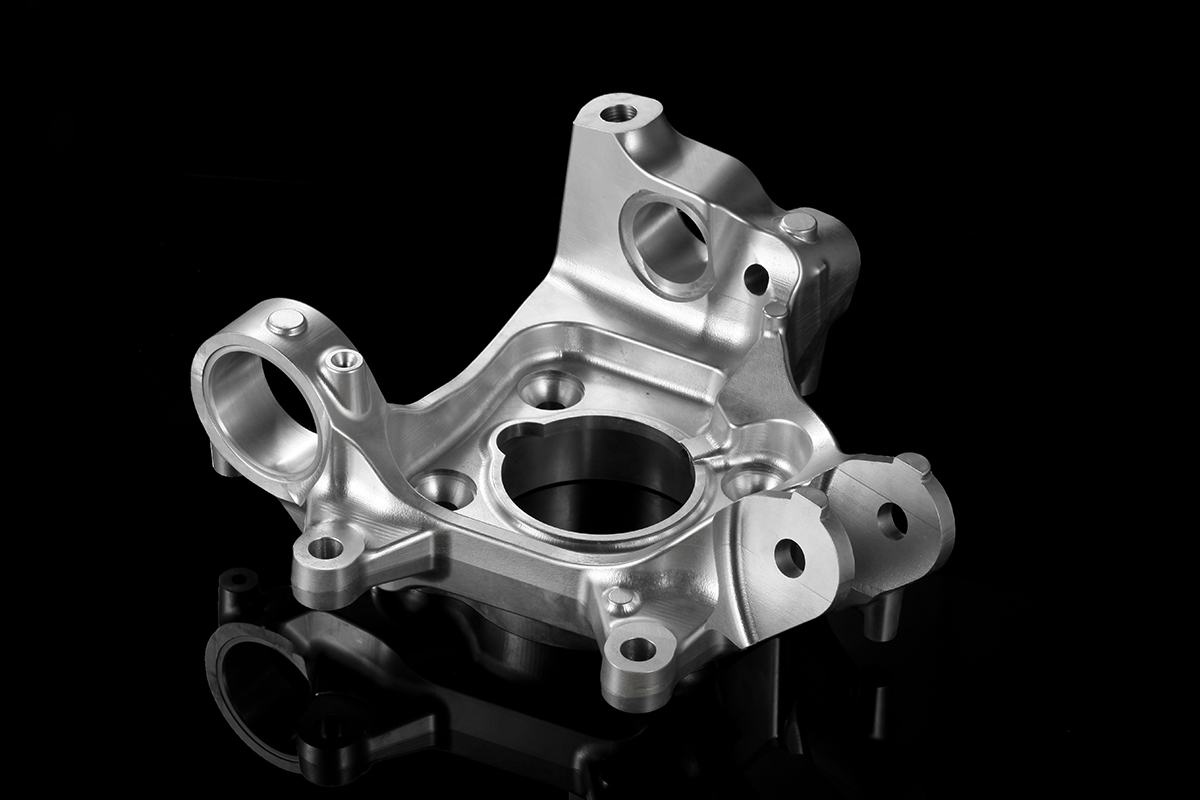

5 Axis CNC Machining Parts

5 Axis CNC machining involves the use of computer numerical control to manipulate a cutting tool along five different axes. The three primary axes—X, Y, and Z—represent the linear movements, while the additional two axes allow for rotational movements. This multi-axis capability provides manufacturers with the ability to create parts with complex shapes and features in a single setup, reducing the need for multiple setups and minimizing the risk of errors.

The process begins with a digital model created using Computer-Aided Design (CAD) software. This model is then converted into a set of instructions that the CNC machine can interpret. The machine uses these instructions to control the movement of the cutting tool, allowing it to carve out the desired shape from the workpiece material.

Advantages of 5 Axis CNC Machining Parts

The use of 5 Axis CNC machining parts offers numerous advantages that make it a preferred choice in various industries:

1. Enhanced Precision

One of the most significant benefits of 5 Axis CNC machining is its ability to produce parts with exceptional precision. The simultaneous movement along multiple axes allows for intricate designs and tight tolerances that are difficult to achieve with traditional machining methods. This level of accuracy is crucial in industries such as aerospace, automotive, and medical device manufacturing, where even the slightest deviation can lead to significant issues.

2. Increased Efficiency

5 Axis CNC machining significantly reduces production time by allowing manufacturers to complete complex parts in a single setup. Traditional machining methods often require multiple setups to achieve the same results, leading to increased labor costs and longer lead times. With 5 Axis CNC machining, manufacturers can streamline their processes, resulting in faster turnaround times and improved productivity.

3. Greater Design Flexibility

The capabilities of 5 Axis CNC machining parts enable designers to create more complex geometries that were previously impossible or impractical to manufacture. This flexibility allows for innovative designs that can enhance product performance and functionality. Manufacturers can explore new design possibilities without being constrained by the limitations of traditional machining methods.

4. Reduced Tool Wear

In traditional machining, tools often experience uneven wear due to the need for multiple setups and adjustments. 5 Axis CNC machining minimizes tool wear by allowing for more consistent cutting angles and paths. This not only extends the life of the cutting tools but also reduces the frequency of tool changes, further enhancing efficiency.

5. Improved Surface Finish

The ability to approach a workpiece from multiple angles allows for better access to complex features, resulting in improved surface finishes. 5 Axis CNC machining parts can achieve smoother finishes with fewer machining steps, reducing the need for additional finishing processes. This is particularly beneficial in industries where surface quality is critical, such as in the production of medical devices and high-end consumer products.

Applications of 5 Axis CNC Machining Parts

5 Axis CNC machining parts are utilized across a wide range of industries, each benefiting from the precision and efficiency that this technology offers. Some notable applications include:

1. Aerospace Industry

In the aerospace sector, 5 Axis CNC machining is essential for producing lightweight and high-strength components. Parts such as turbine blades, brackets, and housings must meet stringent safety and performance standards. The ability to create complex geometries with high precision makes 5 Axis CNC machining an ideal choice for aerospace applications.

2. Automotive Industry

The automotive industry relies heavily on 5 Axis CNC machining parts for manufacturing various components, including engine blocks, transmission housings, and suspension parts. The precision and efficiency of 5 Axis machining ensure that these components meet the rigorous demands of modern vehicles, contributing to improved performance and safety.

3. Medical Devices

5 Axis CNC machining is widely used in the production of medical devices and equipment. Components such as surgical instruments, implants, and diagnostic tools require high levels of precision and biocompatibility. The ability to produce complex shapes and features with tight tolerances makes 5 Axis CNC machining a preferred manufacturing method in the medical field.

4. Mold and Tooling

In the mold and tooling industry, 5 Axis CNC machining is used to create intricate molds and dies for various applications. The precision and flexibility of 5 Axis machining allow manufacturers to produce high-quality molds that can significantly reduce production times and costs.

5. Electronics

The electronics industry benefits from 5 Axis CNC machining parts for creating housings, connectors, and other intricate components. The precision of 5 Axis machining ensures that these parts fit together seamlessly, which is crucial for the functionality of electronic devices.

Best Practices in 5 Axis CNC Machining

To maximize the benefits of 5 Axis CNC machining parts, manufacturers should consider the following best practices:

1. Proper Tool Selection

Choosing the right cutting tools for 5 Axis CNC machining is crucial for achieving optimal results. The material of the workpiece, the desired finish, and the complexity of the design all influence tool selection. Using high-quality tools can enhance performance and extend tool life.

2. Regular Maintenance

Maintaining 5 Axis CNC machines is essential for ensuring consistent performance and longevity. Regular inspections, cleaning, and servicing can prevent breakdowns and maintain the accuracy of the machines. A well-maintained machine is more likely to produce high-quality parts consistently.

3. Continuous Training

Investing in the training of operators and programmers is vital for maximizing the capabilities of 5 Axis CNC machining technology. Continuous education on the latest advancements and techniques can enhance productivity and quality, ensuring that manufacturers stay competitive in the market.

4. Quality Control

Implementing rigorous quality control measures throughout the 5 Axis CNC machining process ensures that components meet the required specifications. This can include regular inspections, testing, and documentation of production processes to maintain high standards of quality.

5. Embracing Innovation

Staying updated on the latest advancements in 5 Axis CNC machining technology can provide a competitive edge. Innovations such as advanced software, improved cutting tools, and automation can enhance efficiency and precision, allowing manufacturers to meet the evolving demands of the market.

5 Axis CNC machining parts are a cornerstone of modern manufacturing, offering unparalleled precision, efficiency, and flexibility. As industries continue to evolve and demand more complex and high-quality parts, the role of 5 Axis CNC machining will only become more significant. By understanding the various applications and advantages of 5 Axis CNC machining parts, manufacturers can leverage this technology to enhance their production processes and meet the ever-changing needs of the market. Embracing 5 Axis CNC machining not only improves product quality but also drives innovation and competitiveness in today's fast-paced manufacturing landscape.
