Vacuum casting has become an essential process for rapid prototyping, low-volume manufacturing, and the production of high-quality, detailed plastic and metal parts. The United Kingdom is home to a vibrant industry of vacuum casting manufacturers and suppliers, offering advanced solutions for a wide range of sectors, including automotive, aerospace, medical devices, electronics, and consumer products. This comprehensive guide explores the leading vacuum casting manufacturers and suppliers in the UK, delves into the process, its advantages, and provides insight into how to select the right partner for your needs.
Vacuum casting is a manufacturing process that uses silicone molds and vacuum technology to produce high-quality plastic or metal parts. The process is especially popular for creating prototypes and small-batch production runs. It is favored for its ability to replicate intricate details and surface finishes, closely simulating injection-molded parts without the need for expensive metal tooling.
Vacuum casting is sometimes referred to as urethane casting or silicone mold casting. It bridges the gap between 3D printing prototypes and full-scale injection molding, offering a cost-effective and efficient solution for producing parts that require high fidelity and functional properties.
The process begins with the creation of a master pattern, typically produced using 3D printing technologies such as SLA (stereolithography) or PolyJet. The master pattern is meticulously finished to ensure the final parts have the desired surface texture and detail. This step is critical because the quality of the master pattern directly influences the final product's accuracy and finish.

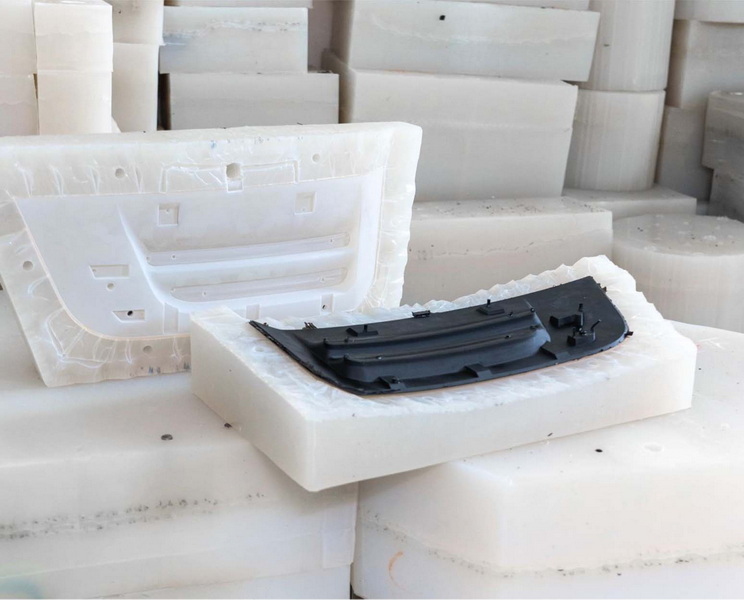

The master pattern is encased in liquid silicone within a casting box. The silicone is then cured, usually under heat, to solidify and capture every feature of the master pattern. Once cured, the mold is carefully cut open, and the master pattern is removed, leaving a precise cavity. The silicone mold is flexible and durable enough to be used multiple times, typically producing between 20 to 25 parts before degradation.
The mold is reassembled, and casting resin (often polyurethane or other specialized materials) is poured into the cavity under vacuum. The vacuum removes air bubbles and ensures the resin fills every detail. After curing, the mold is opened, and the finished part is removed, ready for post-processing. Post-processing may include trimming, sanding, painting, or assembly, depending on the application.
The use of vacuum technology in this process is crucial because it eliminates trapped air, which can cause defects such as voids or bubbles in the final parts. This results in parts with excellent surface finish and mechanical properties that closely mimic injection-molded components.
Vacuum casting offers numerous advantages that make it a preferred choice for many manufacturers and designers:
- Cost-Effective for Low Volumes: Unlike injection molding, vacuum casting does not require expensive metal tooling, making it ideal for prototypes and small production runs.
- High-Quality Surface Finish: Parts can be produced with smooth, detailed surfaces, often requiring minimal finishing. This is particularly important for visual prototypes or parts intended for consumer use.
- Material Versatility: A wide range of resins can simulate different plastics and rubbers, including transparent and colored options. This versatility allows manufacturers to select materials that best suit the mechanical and aesthetic requirements of the final product.
- Rapid Turnaround: Lead times are typically much shorter than traditional manufacturing methods, often within one to two weeks, enabling faster product development cycles.
- Design Flexibility: Complex geometries, undercuts, and fine details are easily replicated. This flexibility supports iterative design and testing without the need for costly retooling.
- Functional Testing: Parts produced through vacuum casting can be used for functional testing, including fit, form, and some mechanical properties, helping to validate designs before mass production.
Vacuum casting is widely used across various industries for:
- Prototyping: Functional and visual prototypes for design validation, user testing, and marketing samples.
- Low-Volume Production: Bridge manufacturing before mass production, allowing companies to fulfill small orders or test markets.
- Medical Devices: Custom parts and housings that require biocompatible or sterilizable materials.
- Automotive Components: Interior and exterior trim, functional parts, and custom accessories.
- Aerospace: Lightweight, complex components that meet stringent quality standards.
- Consumer Electronics: Enclosures, buttons, and interfaces with precise detailing.
- Industrial Equipment: Custom parts for machinery and tools where low volume and high quality are needed.
- Art and Design: Replicas and decorative components with intricate details.
The ability to produce parts with a range of mechanical properties and finishes makes vacuum casting a versatile solution that supports innovation and rapid product development.
The UK boasts a diverse range of vacuum casting manufacturers and suppliers, each offering unique capabilities and expertise. Below are some of the leading companies in the industry, known for their quality, innovation, and customer service:
Xometry UK specializes in rapid vacuum casting services, offering fast quotes, a wide range of materials, and production-quality parts. Their experienced engineering team supports clients from prototyping through to low-volume production. Xometry's online platform streamlines the ordering process, making it easy to upload designs and receive instant pricing.
Prototype Projects delivers high-quality polyurethane vacuum casting, with a focus on detailed finishes and material versatility. Their in-house team manages the entire process, ensuring consistent results for prototypes and end-use parts. They also offer finishing services such as painting, plating, and assembly, providing a one-stop solution.
ARRK is renowned for its comprehensive vacuum casting services, producing batches from a few parts up to 100 pieces. They offer a broad selection of polyurethane resins, including medical and UL-certified grades, catering to diverse industry requirements. ARRK's global presence and engineering expertise make them a reliable partner for complex projects.
CA Models provides vacuum casting solutions using advanced silicone molding techniques, ideal for replicating injection-molded parts in small quantities. Their expertise spans multiple industries, including medical, automotive, and consumer products. They emphasize quality control and fast turnaround times.
AME-3D is a specialist in rapid prototyping and vacuum casting, offering express lead times and a wide range of material options. Their services are tailored for bridge manufacturing and early product testing, helping clients accelerate time to market.
Wall Colmonoy is a leading manufacturer in the aerospace and defense sectors, recently investing in advanced vacuum investment casting technology. Their capabilities include casting nickel-based superalloys for complex, high-performance components. They combine traditional casting expertise with modern vacuum technology to meet stringent industry standards.
Plunkett Associates offers onsite vacuum casting, toolmaking, and injection molding, supporting low-volume, fast-turnaround development parts for various industries. Their integrated approach allows for seamless transitions from prototype to production.
FRP delivers vacuum and RIM casting solutions, focusing on precision and efficiency for any production volume. Their experience with diverse materials and finishes makes them a versatile supplier for both prototyping and small batch manufacturing.
Selecting the best vacuum casting manufacturer or supplier is crucial for ensuring project success. Consider the following factors:
- Technical Expertise: Look for suppliers with a proven track record in your industry and experience with similar projects. Their knowledge can help optimize your design for vacuum casting.
- Material Options: Ensure the supplier offers the materials and finishes required for your application. Some suppliers provide specialized resins for medical or aerospace use.
- Lead Times: Fast turnaround is essential for rapid prototyping and time-sensitive projects. Verify the supplier's typical lead times and capacity.
- Quality Assurance: Ask about quality control processes and certifications. ISO certification or other quality standards indicate a commitment to consistent quality.
- Customer Support: Responsive communication and project management are vital for smooth collaboration. A supplier that offers engineering support can add value.
- Scalability: Choose a supplier capable of scaling production as your needs grow, from prototypes to low-volume production runs.
- Additional Services: Consider suppliers that provide finishing, assembly, or packaging services to streamline your supply chain.
Building a strong relationship with your vacuum casting supplier can lead to better outcomes, faster iterations, and more innovative products.
The UK is home to some of the most advanced vacuum casting manufacturers and suppliers, offering a wide array of services for prototyping, low-volume production, and specialized applications. By leveraging vacuum casting, businesses can achieve high-quality, detailed parts quickly and cost-effectively, making it an indispensable process in modern manufacturing. Whether you are developing new products, testing prototypes, or seeking bridge manufacturing solutions, partnering with the right vacuum casting supplier ensures your project's success from concept to completion. The combination of material versatility, rapid turnaround, and cost efficiency makes vacuum casting a powerful tool for innovators and manufacturers alike.
Vacuum casting manufacturers and suppliers typically offer a wide range of polyurethane resins that can simulate various plastics and rubbers. Materials can be transparent, colored, rigid, or flexible, depending on the application. Some suppliers also provide specialized materials for medical or aerospace use.
A single silicone mold can usually produce between 20 to 25 parts before it begins to degrade. This makes vacuum casting ideal for small-batch production and prototyping, where flexibility and cost-effectiveness are key.
Industries such as automotive, aerospace, medical devices, consumer electronics, and general manufacturing benefit greatly from vacuum casting due to its versatility, speed, and ability to produce high-quality, detailed parts.
Vacuum casting is faster and more cost-effective for low volumes, while injection molding is better suited for mass production. Vacuum casting allows for greater flexibility in design changes and material selection, making it ideal for prototyping and bridge manufacturing.
Lead times vary depending on part complexity and quantity, but most vacuum casting manufacturers and suppliers in the UK can deliver parts within 7 to 15 days, making it a rapid solution for prototyping and short-run production.
