5-Axis machining stands at the forefront of modern precision manufacturing technology. It offers unparalleled flexibility and accuracy compared with traditional three-axis machining methods. At the heart of achieving superior quality in 5-axis machining lies the strategy used to program the tool paths. Effective tool path strategies significantly influence machining efficiency, surface quality, tool life, and the ability to handle complex geometries while preventing collisions and vibrations.
This comprehensive article explores the critical influence of tool path strategies on the quality outcomes of 5-axis machining. We will examine advanced optimization techniques, material-specific considerations, practical case studies, and the latest innovations that combine to improve part accuracy, surface finishes, and overall manufacturing productivity.

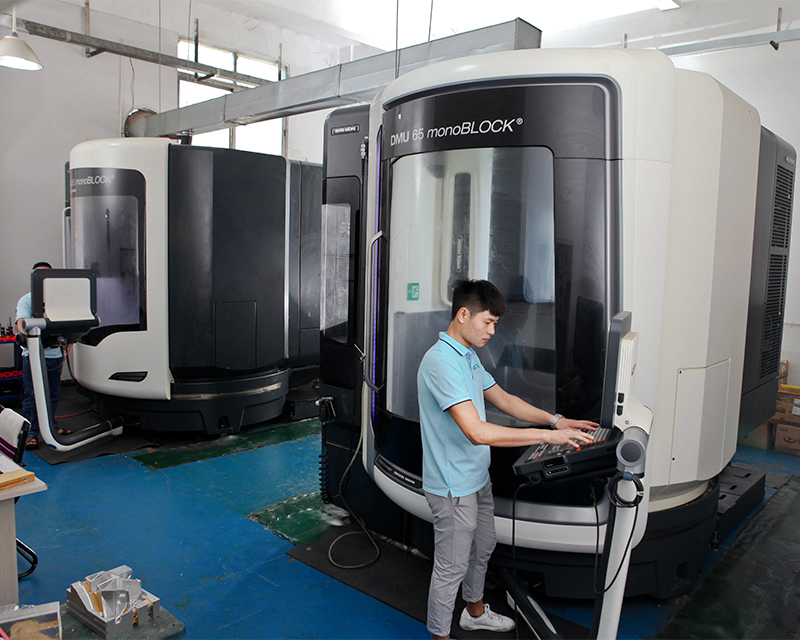

5-Axis machining involves the simultaneous control of a cutting tool along five axes: three linear axes (X, Y, Z) and two rotational axes (commonly A and B). This multi-axis capability enables the machining of highly complex shapes—such as turbine blades, aerospace parts, intricate molds, and automotive components—with fewer setups and improved precision.
The tool path is the programmed route that the cutting tool follows relative to the workpiece. In 5-axis machining, tool path planning is vastly more complex than in 3-axis systems. The process must account for additional degrees of freedom, tool tilt angles, collision avoidance with the part or machine components, continuous surface engagement, and optimized cutting conditions.
An expertly programmed tool path maximizes machining stability, surface quality, and tool longevity, ensuring cost-effective production without compromising dimensional accuracy.
Effective tool path strategies calibrate the interaction between the tool and workpiece to achieve precision, improve surface finish, and extend tool life. Below are some cutting-edge tool path strategies critical to 5-axis machining quality:
Guiding curve strategies guide the tool along curves that naturally follow the surface topography of the part. This approach produces smoother tool motions, which reduce machining time and minimize surface irregularities. Especially useful for free-form and sculpted surfaces, guiding curves reduce unnecessary accelerations and vibrations by aligning with the natural flow of the geometry.
This hybrid strategy begins with a traditional 3-axis tool path and dynamically adjusts tool orientation with rotational axes to avoid collisions and reach difficult contours. By enabling tilting of the tool, it allows the use of shorter tools and facilitates more aggressive cutting parameters, drastically reducing vibrations and improving surface finish.
Adaptive roughing strategies optimize tool paths by maintaining a constant chip load, adapting dynamically to variations in material hardness and geometry. This ensures more stable cutting forces, reducing tool wear and preventing sudden load spikes. The controlled engagement extends tool life and improves process efficiency, especially when machining materials with inconsistent mechanical properties.
Curvature matching aligns the tool axis precisely with the curvature of the workpiece surface. This strategy minimizes tool engagement fluctuations and reduces marks or imperfections on the surface, resulting in superior finishes on complex free-form geometries. It enhances both aesthetic quality and dimensional accuracy.
Using Non-Uniform Rational B-Spline (NURBS) curves parameterized by arc length creates exceptionally smooth and precise tool path trajectories. NURBS-based paths follow complex contours with minimal chordal deviation, reducing surface scalloping and enabling high-precision machining of intricate details.
By leveraging 3D machine kinematics simulations and advanced path planning algorithms, spatial optimization minimizes unnecessary retract movements and collision risks. These algorithms consider the geometry of the tool, holder, workpiece, and machine axes to generate safe and efficient tool paths. Real-time simulation capabilities allow process engineers to verify and refine strategies before actual machining, preventing costly crashes.
The material being machined profoundly influences the choice and tuning of tool path strategies. Different materials require tailored approaches to achieve the best balance of productivity, surface integrity, and tool longevity.
Thermoset composite laminates, common in aerospace and automotive sectors, exemplify materials that require special tool path considerations due to their unique properties:
- Mechanical Properties: Variations in stiffness and layer adhesion demand adaptive cutting forces to avoid damage.
- Heat Sensitivity: Overheating can cause resin degradation or delamination; thus, cutting speeds and feeds must be precisely controlled to minimize thermal effects.
- Fiber Orientation: Tool paths must align strategically with fiber directions to avoid tearing or delamination.
- Resin Systems and Fillers: Different resin chemistries affect chip formation and cutting tool wear, requiring optimization of tool geometry and path strategies.
- Surface Finish Demands: Meeting tight surface finish requirements often depends on applying curvature matching and smooth, continuous tool paths.
- Tool Selection: Tool geometry and coatings must complement the material to resist wear and thermal loading.
In metal machining, like titanium or aluminum alloys, tool path strategies emphasize smooth tool engagement and constant chip load to manage material hardness and thermal conductivity differences. Materials with higher thermal expansion or poor conductivity require gentler tool angles and slower feeds, while stable materials tolerate higher speeds with aggressive tool paths.
Swarf cutting is a specialized machining technique where the tool cuts along the side of the part surface rather than the conventional top-down approach. Using 5-axis tool path programming, swarf cutting leverages precise tool tilt and approach angles to minimize visible tool marks and improve finish quality.
In modern CAD/CAM systems, operators can define multiple face selections and apply tool clearance parameters for swarf operations. The software simulates the tool holder as translucent during path previews to visually check for collisions and ensure consistent tool engagement.
Moreover, the ability to adjust the simulation speed in real-time allows machining engineers to analyze complex tool movements and optimize the process before production. This results in significant time savings and quality improvements for parts with intricate side features.
- Reduced Cycle Time: By minimizing non-cutting moves and enabling higher feed rates, optimized paths markedly reduce machining time.
- Superior Surface Quality: Smooth, continuous multi-axis motion reduces marking and scalloping on finished surfaces.
- Extended Tool Life: Maintaining consistent cutting forces and reducing vibrations prevents premature tool wear and costly replacements.
- Enhanced Collision Avoidance: Robust spatial optimization and simulation protect tooling and equipment from crashes.
- Improved Machining Flexibility: Complex geometries can be accurately produced in fewer setups, cutting labor and fixture costs.
- Better Adaptation to Complex Materials: Material-aware path planning reduces defect risks such as delamination in composites or thermal damage in metals.
Recent advances in digital manufacturing have pushed the boundaries of tool path strategy development:
- Artificial Intelligence and Machine Learning: AI algorithms analyze prior machining data to predict optimal tool paths for new parts, balancing speed and quality automatically.
- Real-Time Path Adjustment: Integration of sensor feedback from tools and machines allows dynamic modification of tool paths to compensate for tool wear or thermal expansion.
- Cloud-Based CAM Systems: Collaborative tool path programming and simulation via cloud platforms enable faster iterations and error checking by distributed teams.
- Hybrid Manufacturing Support: Advanced tool path algorithms enable smooth transitions between additive and subtractive steps in multi-process manufacturing cells.
These innovations promise further enhancements in machining precision, flexibility, and cost-effectiveness of 5-axis machining.
Tool path strategies are integral to the quality, efficiency, and cost-effectiveness of 5-axis machining. By employing advanced strategies such as guiding curves, 3-to-5 axis tilting, multi-axis adaptive roughing, curvature matching, and spatial optimization, manufacturers can drastically improve surface finish, tool life, and process safety. Material-specific path adaptations, especially for challenging composites and metals, unlock further productivity and quality gains.
The continued evolution of tool path programming, enhanced by simulation, AI, and real-time feedback, ensures that 5-axis machining will remain a crucial technology in producing complex, high-precision parts across aerospace, automotive, medical, and mold-making industries.
5-axis machining adds two rotational axes to the three linear ones, allowing the tool to approach material from various angles. This capability reduces the need for multiple setups, improves accuracy on complex geometries, and produces better surface finishes compared to 3-axis machining.
Tool path strategies determine how smoothly and continuously the tool engages the surface. Strategies like guiding curves and curvature matching ensure steady contact, reduced vibration, and minimal scallops or tool marks, directly improving surface quality.
Yes. Maintaining consistent chip load and avoiding abrupt tool engagement or vibrations through strategies such as adaptive roughing greatly extends tool life by preventing uneven wear and thermal damage.
Collision avoidance relies on advanced path planning algorithms that model tool, holder, part, and machine geometry. Real-time simulation and spatial optimization help generate safe, collision-free trajectories.
Different materials have varying hardness, heat sensitivity, and fiber orientations, which affect cutting parameters. Tool paths must be adapted for feed rate, cutting angle, and tool engagement to minimize defects and maximize machining efficiency.
