Vacuum casting is an advanced manufacturing process that significantly improves product quality and consistency, especially in rapid prototyping and small-batch production. This technology offers precise replication of intricate designs and fine details, making it ideal for a variety of industries requiring high-fidelity parts. In this article, we explore the vacuum casting process, its benefits, applications, and why it is essential for delivering outstanding product performance in modern manufacturing.
Vacuum casting is a molding process that uses a vacuum to draw liquid silicone or polyurethane resins into a mold. The mold is usually produced from an original master model, which ensures that each cast is an accurate reproduction. Unlike traditional casting methods, vacuum casting reduces the formation of bubbles and voids, resulting in superior surface finishes and structural integrity.
This technique is particularly suited for low to medium volume production where high accuracy and excellent surface detail are needed. It bridges the gap between 3D printing prototypes and mass production using injection molding.
Vacuum casting involves several carefully controlled stages to ensure part quality and consistency:
1. Master Pattern Creation:
A precise prototype is created using advanced 3D printing, CNC machining, or handcrafted methods. This master pattern is critical as it serves as the original template for the silicone mold. Its accuracy and surface finish directly impact the final cast parts.
2. Mold Fabrication:
The master pattern is placed inside a mold box, and liquid silicone rubber is poured over it. Once cured, the silicone mold encapsulates all the details of the master, including fine textures and sharp edges. This flexible silicone mold can be used to replicate parts repeatedly with minimal degradation.
3. Mold Preparation:
The silicone mold halves are carefully cleaned, coated if necessary, and assembled. The mold is then fixed into the vacuum casting machine to create a sealed environment, essential for the next step.
4. Vacuum Filling:
Liquid polyurethane or other casting resin is poured into the mold chamber. The vacuum pressure draws the resin deep into the mold cavities, removing trapped air bubbles and ensuring dense, void-free parts.
5. Curing:
The resin inside the mold cures at room or elevated temperatures, hardening into the desired shape. The curing time varies depending on resin type and part size.

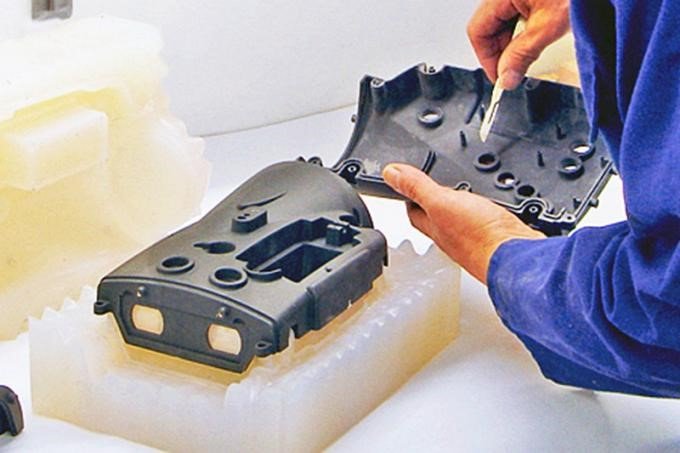

6. Demolding and Post-Processing:
Finished parts are carefully removed from the mold and undergo any necessary trimming, sanding, painting, or assembly before final inspection and delivery.
This process allows manufacturers to faithfully reproduce complex designs, functional prototypes, or end-use components with high accuracy.
Vacuum casting offers distinctive advantages that contribute to enhanced product quality and process efficiency:
The vacuum environment minimizes the formation of air bubbles that typically cause surface defects in conventional casting. The silicone molds capture surface details down to microns, allowing perfect replication of textures, logos, and fine edges. This reduces or eliminates the need for expensive secondary finishing processes such as polishing or grinding.
A wide variety of casting resins are compatible with vacuum casting, including rigid, flexible, transparent, and heat-resistant polyurethane resins. This range enables manufacturers to produce parts that closely mimic the properties of final production materials, which is beneficial for functional testing and marketing.
Investment in thermoplastic tooling or injection molds can be prohibitively expensive and time-consuming for small runs. Vacuum casting silicone molds cost a fraction of this and can produce up to 100 parts, making it a budget-friendly option for prototypes, market samples, or limited production.
Vacuum casting molds can be fabricated within days, which slashes development lead times compared to traditional tooling. Rapid delivery helps companies iterate designs faster, validate concepts, and bring products to market sooner.
Because vacuum pressure ensures resin fills the mold uniformly, each cast part maintains consistent weight, dimensions, and mechanical properties. This repeatability is critical in prototype validation and small-scale manufacturing, where part-to-part variation must be controlled.
Silicone molds have a long life span and are reusable. Also, many casting resins used in vacuum casting are formulated with low VOC emission and can be handled with minimal environmental impact, aligning well with sustainable manufacturing goals.
The versatility and precision of vacuum casting enable it to serve a broad range of industries and manufacturing needs.
In the consumer electronics sector, vacuum casting is used to manufacture functional prototypes and small series production parts such as housings, connectors, and ergonomic components. This allows design engineers to test the fit and function of devices before committing to costly injection molding tooling.
Vacuum casting is perfect for producing lightweight prototype parts for automotive dashboards, control panels, and aerospace interior components. Its ability to replicate detailed textures and integrate various materials helps engineers evaluate aesthetics and performance under real-world conditions.
For medical device manufacturers, vacuum casting offers a cost-effective method to produce biocompatible prototype components and surgical tool handles. Parts created via vacuum casting can undergo regulatory testing and clinical trials with realistic design and material properties.
Handles, knobs, brackets, and other functional components for industrial equipment often require customized designs and quick turnaround. Vacuum casting enables flexible manufacturing of these parts in small quantities with consistent quality.
Fashion accessories, decorative items, and personalized gadgets benefit from vacuum casting's ability to produce high-quality, visually appealing pieces in limited batches. This process accommodates design changes and fast alterations without sunk mold costs.
The success of vacuum casting in delivering flawless parts depends on strict process control and optimized materials.
The design of the silicone mold must incorporate features facilitating resin flow and demolding while preserving detailed features. Routine inspection and maintenance of molds prolong their life and ensure continuous high-quality output.
Selecting the right resin compatible with the product's mechanical, chemical, and aesthetic requirements is critical. Proper storage and mixing of resins avoid contamination and inconsistent curing, which can affect final quality.
Maintaining stable vacuum pressure and temperature during casting and curing stages prevents the formation of defects such as voids, incomplete filling, or material shrinkage.
Trimming flash, sanding edges, and adding surface finishes like painting or plating enhance final part appearance and functionality. These steps must be integrated into quality assurance procedures to guarantee consistency.
As a professional factory specializing in rapid prototyping, CNC machining, precise batch production, lathe turning, sheet metal fabrication, 3D printing, and mold production, Shangchen provides comprehensive vacuum casting services tailored to international OEM clients.
Our expertise includes:
- Utilizing high-precision master pattern creation to ensure flawless mold production.
- Designing molds for optimal resin flow and easy demolding.
- Employing premium casting resins for durability, flexibility, and aesthetic fidelity.
- Strict quality control protocols to verify dimensional accuracy and surface finish.
- Fast turnaround times suitable for product development cycles.
- Collaborative OEM communication to meet specific client standards and applications.
This integrated approach ensures that every vacuum cast part meets or exceeds expectations for quality and consistency.
Vacuum casting is a crucial manufacturing technique that enhances product quality by delivering bubble-free, dimensionally accurate, and highly detailed parts. It serves as an optimal solution for prototypes and low-volume production, providing cost-effective and rapid manufacturing without compromising on material choice or surface finish. Its wide application across electronics, automotive, medical, industrial, and consumer goods industries underscores the versatility and reliability of vacuum casting.
Manufacturers and product developers seeking to accelerate their product development, reduce costs, and maintain tight quality control will find that vacuum casting is an invaluable tool in their production arsenal. Leveraging professional services like Shangchen's vacuum casting capabilities unlocks the full benefits of this technology to meet demanding OEM requirements and international market standards.
Vacuum casting primarily uses polyurethane and silicone resins available in various formulations including rigid, flexible, transparent, and heat-resistant types. These materials allow manufacturers to closely simulate the mechanical and aesthetic properties of final production parts.
A typical silicone mold can produce between 20 to 100 parts depending on molding conditions, resin type, and part complexity. Mold life can be extended with proper care and usage within recommended parameters.
Vacuum casting is most cost-effective for small to medium-sized production runs. It offers quick turnaround and low tooling costs but is generally not suitable for high-volume mass production where injection molding becomes more economical.
From mold fabrication to delivery of finished parts, the vacuum casting process can take anywhere from several days to two weeks, depending on project complexity, resin curing times, and finishing requirements.
Yes, vacuum casting's silicone molds are highly flexible and capable of reproducing complex geometries, fine textures, and intricate details with high accuracy, often difficult to achieve with other casting methods.
