Choosing the right 5-axis machining partner is a pivotal decision for manufacturers, OEMs, and brands seeking precision, efficiency, and high-quality production in complex parts. 5-axis machining unlocks capabilities beyond traditional 3-axis methods by allowing simultaneous movement across five different axes, enabling intricate geometries, superior surface finishes, and faster production cycles. This article offers a comprehensive guide to evaluating 5-axis machining partners, ensuring your business selects the best fit for success.

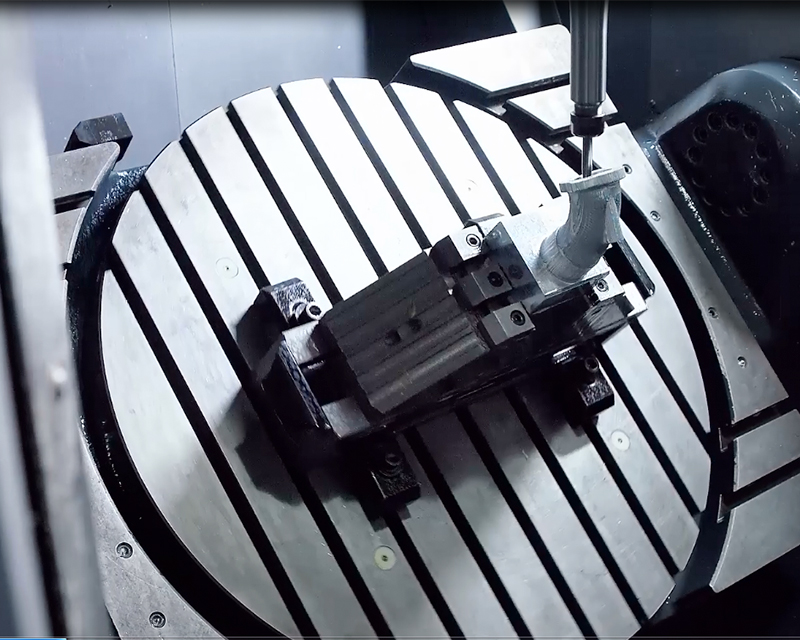

5-axis machining refers to CNC (computer numerical control) milling where the tool or workpiece moves along the X, Y, Z linear axes plus two rotational axes called A and B. This multi-axis movement enables the cutting tool to approach the material from nearly any angle. Compared to 3-axis machining, which only moves the tool in three directions, 5-axis machining offers:
- The ability to produce highly complex part geometries and freeform surfaces
- Reduced setups, with complex parts typically completed in a single clamping
- Improved surface finishes, accuracy, and tight tolerances
- Enhanced drilling capabilities at compound angles
These benefits combine to drive faster lead times, increased production efficiency, and consistent, high-quality output.
Experience with your specific industry and part types is critical. Check if the partner has a proven track record of working with your materials (e.g., aluminum, steel alloys, plastics) and complexity level. Also, certifications like ISO 9001, AS9100 (aerospace), or FDA registration (medical) indicate robust quality systems and compliance standards. A knowledgeable partner will offer valuable design-for-manufacturability (DFM) support to optimize parts for machining without sacrificing function.
Experienced partners also stay updated with the latest machining technologies and industry trends, which means they can offer insights into new materials, processes, and improvements that add value to your designs. This expertise is crucial when working on challenging or highly customized projects.

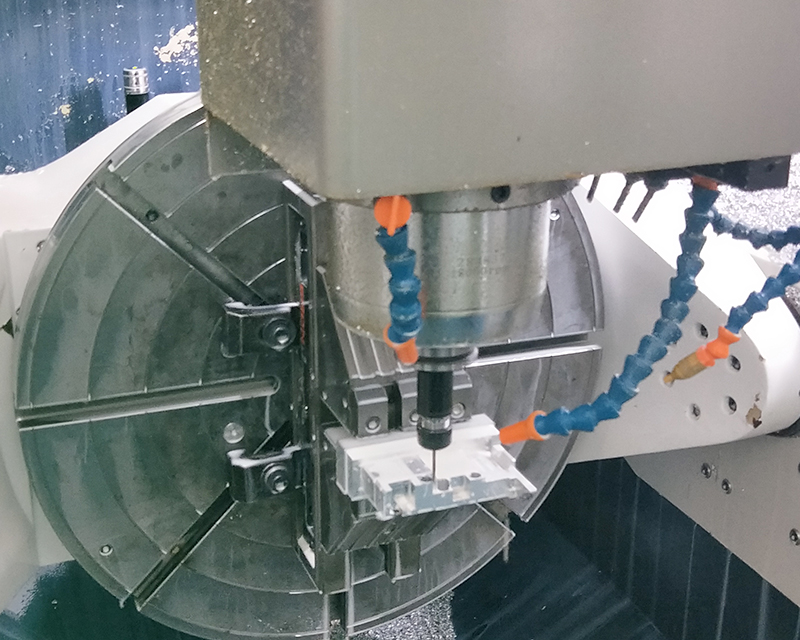

Assess the machinery and technology the partner uses. True simultaneous 5-axis machines deliver superior precision and capabilities over basic 3+2 axis setups. Important machine specifications include:
- Wide range of motion across all axes to handle complex geometries
- High spindle speeds to enhance cutting performance and reduce cycle time
- Precision and repeatability measured in microns for consistent quality
- Robust machine construction to minimize vibrations and maintain accuracy during hard metal machining
Additionally, modern 5-axis machining centers often integrate advanced software for toolpath optimization, real-time monitoring, and adaptive control. A partner equipped with such technologies can improve machining efficiency, reduce errors, and ensure parts meet the tightest specifications.
Quality control is essential for producing precision components in every batch. Inquire about the company's quality control processes. Do they implement rigorous inspection and testing throughout manufacturing to ensure precision to tight tolerances? Certifications aligned with your industry requirements provide confidence on quality assurance. Quality systems should cover every stage from raw material intake to final part inspection.
Look for partners who use state-of-the-art metrology equipment such as Coordinate Measuring Machines (CMM), laser scanners, and optical comparators to verify critical dimensions and surface quality. Some may also offer First Article Inspection (FAI) reports or statistical process control documentation to demonstrate consistent production quality.
Partner capabilities should align with your production volume requirements. Ask about their throughput capacity and ability to scale for batch sizes from rapid prototyping to precision batch production. Reliable partners guarantee turnaround times and on-time delivery so you can meet market deadlines without sacrificing quality.
Flexibility is also important — the partner should handle urgent jobs with expedited lead times while remaining consistent in quality. Check if they have multiple shifts, backup machines, and supply chain robustness that minimize downtime risks.
A top machining partner provides not just manufacturing but also engineering collaboration. Clear communication channels and accessible technical expertise help quickly resolve issues and optimize part designs. This reduces costly rework and shortens development cycles. Look for partners who prioritize client collaboration and offer customization flexibility.
An ideal partner can assist with DFM recommendations, material selection guidance, tolerance allocation, and value engineering. They can also support you through prototyping, testing, and iterative refinement phases. Transparent and prompt communication — through project management tools, regular status updates, and direct technical contact — ensures smooth project flow.
Competitive pricing is important but should not compromise quality. Evaluate the pricing model for clarity on tooling, setup costs, and volume discounts. Consider the overall value from speed, precision, lower scrap rates, and reduced setup times that 5-axis machining can provide versus just lowest cost quotes.
Consider total cost of ownership, including how quick turnaround and high-quality production reduce inventory holding costs and improve your time-to-market. A reliable partner's expertise may also prevent design and manufacturing errors that could result in expensive recalls or delays.
- Higher Precision and Accuracy: Achievable through complex tool positioning and fewer setups, minimizing repositioning errors. The added axes allow the cutting tool to approach parts at optimal angles controlling surface finish and dimensional accuracy more tightly.
- Fast Production Speeds: Single setups reduce cycle times significantly, eliminating multiple fixturing steps. This efficiency translates to shorter lead times from prototype to production.
- Capability for Complex Geometries: Handles freeform surfaces and intricate contours with ease, enabling manufacturers to produce parts that were previously impossible or too costly on 3-axis machines.
- Improved Surface Finishes: Shorter cutting tool lengths reduce vibration, enhancing finishes and often reducing the need for secondary finishing processes like polishing or grinding.
- Reduced Setup and Handling: One clamping reduces errors and operator interaction, improving repeatability and lowering risk of damage.
- Enhanced Drilling at Angles: Access to tight, complex angles impossible with traditional setups, enabling complex component features in aerospace, automotive, and medical applications.

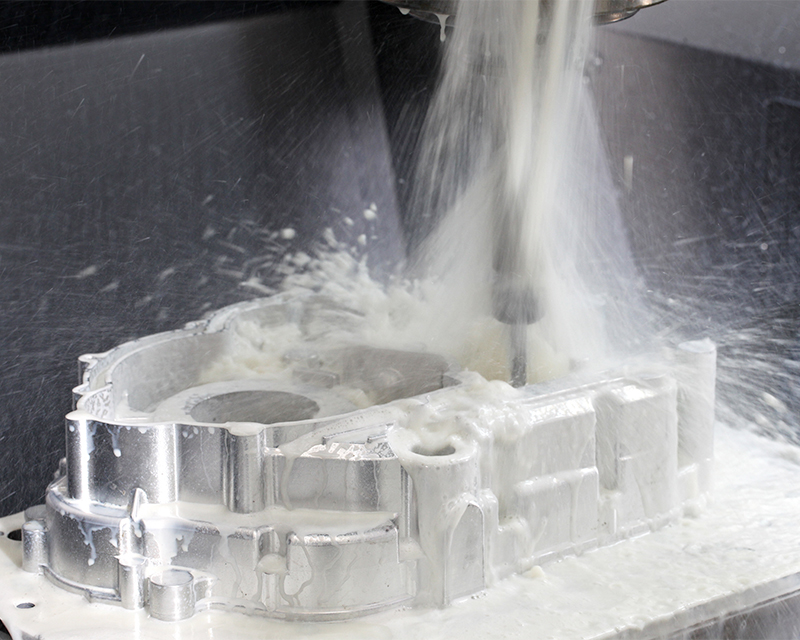

- Versatile Material Compatibility: 5-axis machining effectively processes metals like aluminum, titanium, stainless steel, and hard alloys as well as plastics and composites, broadening application scope.
- Greater Design Freedom: Engineers can implement advanced part geometries that improve product functionality, reduce weight, or enhance aesthetics, giving your product a competitive edge.
Selecting the optimal 5-axis machining partner requires thorough assessment across expertise, machine technology, quality systems, production capacity, communication, and cost. The right partner will not only deliver highly precise and complex parts efficiently but also provide engineering support and reliable service. These attributes ensure your manufacturing projects maintain competitive advantage through quality, speed, and innovation. Investing the time to evaluate partners carefully will secure your business's success with advanced 5-axis machining capabilities.
A strong 5-axis machining partnership can unlock new design possibilities, shorten time-to-market, and reduce manufacturing risks — critical factors for thriving in today's competitive landscape.
Aerospace, medical device manufacturing, automotive, energy, and high-precision engineering sectors that require complex geometries and tight tolerances rely heavily on 5-axis machining.
By enabling all machining operations in a single setup without repositioning the workpiece, 5-axis machining reduces cycle times, minimizes errors, and accelerates lead times.
Common certifications include ISO 9001, AS9100 for aerospace, and FDA registration for medical parts, signifying compliance with industry quality standards.
Yes, 5-axis machines can process metals like aluminum, steel alloys, titanium, and plastics with high precision and efficiency.
3+2 axis setups allow positioning in five axes but only cut along three simultaneously, whereas true 5-axis machining cuts while moving along all five axes at once for superior precision, surface finish, and geometry complexity.
