In today's advanced manufacturing landscape, Rapid Prototyping has emerged as a transformative process enabling faster, more precise product development cycles. Modern industries—from automotive to medical devices, electronics to aerospace—rely on rapid prototyping to create functional models, test designs, and ultimately speed up time to market. But while speed and flexibility are essential, maintaining impeccable quality through every stage of prototyping is equally critical. Without robust quality control, rapid prototyping can lead to costly design flaws, production delays, and compromised product performance.
In this comprehensive article, we explore the critical steps and industry best practices that manufacturers implement to ensure quality control during rapid prototyping. We uncover how leading factories, such as advanced Chinese facilities specializing in CNC machining, batch production, sheet metal fabrication, 3D printing, and mold making, guarantee consistent and exceptional results, earning trust from global OEM clients. Along the way, you'll find insights into the techniques, tools, and philosophies underpinning quality assurance in rapid prototyping.

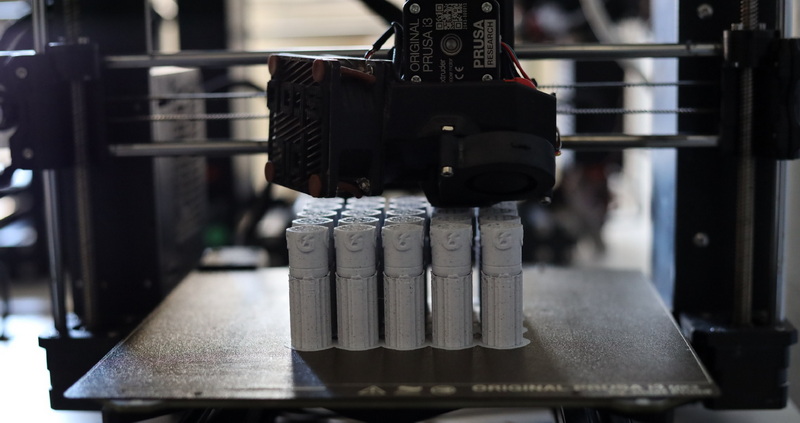

Rapid prototyping refers to a set of techniques and technologies that allow for quick fabrication of a part or assembly using three-dimensional computer-aided design (CAD) data. Factories specializing in rapid prototyping employ numerous methods:
- CNC machining
- Sheet metal processing
- 3D printing (such as stereolithography, selective laser sintering, fused deposition modeling)
- Injection molding for prototype tooling
- Precision batch production
The main advantage is the ability to swiftly turn innovative concepts into tangible prototypes, ready for testing or short-run production. This agility is unmatched by traditional manufacturing processes and allows designers and engineers to iterate faster, reduce risks, and perfect their products before mass manufacturing.
Modern rapid prototyping facilities in China have become global leaders, providing OEM services to brands, wholesalers, and manufacturers worldwide. Their expertise covers a broad range of materials and applications, from plastics and metals to complex assemblies, catering to multiple sectors with high standards and competitive pricing.
Quality control in rapid prototyping is not just about achieving the correct fit or finish on a prototype. It's about building a foundation for product integrity, performance, and future manufacturability. Even minor errors in the prototyping phase can cascade into major setbacks in mass production. Here's why meticulous quality control is indispensable:
- Ensures design intent is faithfully realized: The prototype must accurately reflect the designer's vision, including critical dimensions and functional features.
- Prevents costly production defects down the line: Early detection of flaws minimizes rework, redesign, and wasted materials.
- Guarantees functional and aesthetic standards are met: Whether the prototype occupies the role of a functional part or a visual model, quality must be uncompromised.
- Builds customer confidence and trust in manufacturing partners: Consistent quality strengthens business relationships and supports OEM collaboration.
Poorly controlled quality during rapid prototyping leads to:
- Delayed project timelines due to last-minute modifications and re-production.
- Increased development costs stemming from defective parts or inadequate testing.
- Loss of customer trust and competitive edge as products fail to meet expectations or are late to market.
Quality assurance in rapid prototyping is a multi-stage process, weaving together digital tools and skilled human inspection. The following steps encapsulate the critical control points where manufacturers focus their efforts.
The first step occurs long before the physical prototype appears:
- Feasibility analysis: Engineers analyze the CAD files for potential issues such as undercuts, thin walls, or unsupported features that could be difficult or impossible to produce using the selected rapid prototyping method.
- Tolerance review: Designers work closely with manufacturing engineers to set realistic and achievable tolerances. Unrealistic tolerances can lead to scraps, excessive costs, or functional failures.
- Material suitability check: Not all prototype methods work with every material, so selection must be aligned with product requirements considering strength, flexibility, heat resistance, etc.
Before actual production, many manufacturers employ simulation software to test the virtual prototype. This process predicts stress points, thermal deformation, and mating with other components in an assembly. Simulation allows designers to refine their concepts proactively, reducing costly iterations.
Raw material quality is foundational to prototype success:
- Suppliers are carefully vetted and must provide certified material specifications to ensure compositional fidelity.
- Incoming batches undergo first-article inspections, which often include dimensional checks and surface quality validation.
- Depending on the material type (metal or polymer), specific tests such as hardness measurement, tensile strength, and melt flow rate evaluations are conducted.
Effective material inspection also involves maintaining traceability, so if any issue arises during prototyping or production, the source material batch can be quickly identified and quarantined.
The manufacturing process itself demands continuous monitoring to avoid drifting into non-conformance:
- First Article Inspection (FAI): The first piece produced in a batch is thoroughly inspected. It sets the benchmark for subsequent parts to ensure process stability.
- Real-time process monitoring: Advanced CNC setups and 3D printing systems are equipped with sensors that track tool condition, machine vibrations, temperature, laser power, and other process parameters to detect anomalies early.
- Operator vigilance and intervention: Skilled operators are trained to recognize subtle cues and intervene immediately if parameters deviate. Regular calibration of machines and tools is also essential.
In modern workshops, on-machine probing and in-line measuring instruments enable immediate feedback without interrupting production flow.
Upon completing the fabrication process, prototypes undergo a battery of inspections aimed at confirming their readiness:
- Dimensional verification: Precision tools such as calipers, micrometers, and coordinate measuring machines (CMMs) are used to check critical dimensions against the CAD model.
- Surface finish evaluation: Depending on the prototype's function or display purpose, surface roughness, color uniformity, and texture assessment ensures high-quality appearance.
- Functional testing: Moving components are assembled and put through their expected motions and stresses to verify durability and functionality.
- 3D scanning: Some facilities use laser or structured-light 3D scanning to generate a detailed point cloud of the prototype surface, which is then compared to the original design to identify deviations in even the smallest features.
Where applicable, prototypes undergo environmental or stress tests simulating real-use conditions to validate their performance before being signed off.
Quality control is a cyclical process that thrives on data and iterative enhancement:
- Manufacturers document all inspection results and defects in centralized databases.
- Non-conformances trigger formal corrective and preventive actions (CAPA), involving root cause analysis and process adjustments.
- Customers' feedback during prototype evaluation plays a critical role in identifying issues that may not be immediately apparent in manufacturing.
- Continuous training programs for personnel keep quality assurance teams up to date with emerging industry standards and technologies.
- Repeatability studies, where the same prototype is produced multiple times to confirm consistent quality, bolster confidence in the manufacturing process.
Top-tier rapid prototyping manufacturers combine systemic rigor with technological innovation. This blend ensures that rapid turnaround times in prototyping do not come at the expense of quality.
Key best practices include:
- Obtaining and maintaining ISO certifications, such as ISO 9001, which codify and standardize quality management practices across the organization.
- Meticulous documentation and traceability of all activities from design, material sourcing, production, and inspection.
- Leveraging automated inspection technologies to reduce human error and speed up quality checks.
- Collaborating closely with clients to clarify requirements, share design intent, and refine prototypes collaboratively.
- Investing in employee skills development, ensuring teams are proficient with the latest tools and quality methodologies.
By adopting these strategies, manufacturers consistently meet or exceed customer expectations, ultimately facilitating smoother transitions from prototype to mass production.
The digital revolution in manufacturing has introduced powerful tools that transform quality control in rapid prototyping processes:
- Computer-Aided Design and Manufacturing (CAD/CAM) Software: These platforms not only create accurate digital models but also generate toolpaths and simulation models that optimize manufacturing and reduce errors.
- 3D Scanning and Metrology Equipment: High-resolution scanners capture the complete geometry of produced parts, enabling comprehensive deviation analysis and quality documentation.
- Automated Coordinate Measuring Machines (CMMs): CMMs with robotic arms or gantries provide precise and repeatable measurements far beyond manual tools.
- In-line Sensors and Cameras: These allow real-time data collection on process parameters to quickly flag anomalies.
- Data Analytics and Statistical Process Control (SPC): Advanced analytics monitor trends over time, detect subtle variances, and predict quality issues before they affect output.
Introducing these technologies enhances consistency, lowers inspection times, and supports data-driven decision-making within rapid prototyping workflows.
Despite all the advances, quality control in rapid prototyping faces specific hurdles:
- Short lead times: The urgency to deliver quick prototypes can pressure quality teams to shorten inspections, increasing risk.
- Geometric complexity: Designs with intricate internal channels, lattices, or variable wall thickness demand sophisticated measurement techniques and can complicate production.
- Material diversity: Different materials respond differently during machining or printing, requiring tailored inspection criteria and expertise.
- Batch-to-batch variability: Small production runs have greater variability potential compared to large-scale manufacturing, making consistent quality harder to maintain.
Successfully navigating these challenges requires a balance of technology, skilled personnel, and streamlined processes tailored to the unique pressures of rapid prototyping.
Quality control in rapid prototyping is the cornerstone of successful product development. By combining advanced technology, meticulous process management, and a commitment to continuous improvement, manufacturers deliver prototypes—and ultimately final products—that adhere to the highest standards of function, fit, and finish. As industries continue to innovate and accelerate time-to-market demands, robust quality assurance in rapid prototyping ensures that ideas transition seamlessly from the designer's screen to the real world, ready for mass production and commercial success.
The most common defects include dimensional inaccuracies due to machine calibration errors, surface imperfections such as roughness or stringing especially in 3D printing, warping caused by thermal stresses, and occasional material inconsistencies. Early-stage inspections and real-time monitoring help manufacturers identify and resolve these issues promptly.
Manufacturers utilize precision metrology equipment such as coordinate measuring machines (CMMs) and 3D laser scanners to capture fine details and compare them rigorously with the original CAD data. In addition, real-time machine monitoring and strict process control help maintain accuracy throughout production.
Rapid prototyping accommodates a broad spectrum of materials including various plastics, metals such as aluminum and stainless steel, and composites. That said, certain materials require specialized processing technologies or handling precautions, so discussing material needs upfront with your manufacturing partner is essential.
Unlike mass production, where the focus is on maintaining consistency across high volumes, rapid prototyping focuses more on flexibility and adaptability. Quality control in prototyping allows for frequent changes and iterations, placing higher emphasis on design validation and functional testing rather than solely on repeatability.
Customers are integral to quality control as they set specifications, review prototypes, and provide feedback. Their input guides iterative improvements, assists in verifying that prototypes meet real-world requirements, and helps manufacturers tailor processes to specific application needs.
