Rapid prototyping has revolutionized the way products are designed and brought to market. By enabling quick iterations and functional testing, rapid prototyping empowers designers, engineers, and manufacturers to validate concepts, reduce development cycles, and minimize costly mistakes. However, achieving true rapid prototyping success requires more than just access to advanced manufacturing technologies—it demands thoughtful design optimization tailored for rapid prototyping processes.
In this comprehensive guide, you'll discover actionable strategies to optimize your designs for rapid prototyping, ensuring that your prototypes are not only produced quickly but also meet your functional and aesthetic expectations. Whether you're a product manager, engineer, or entrepreneur, these insights will help you leverage rapid prototyping to its fullest potential.

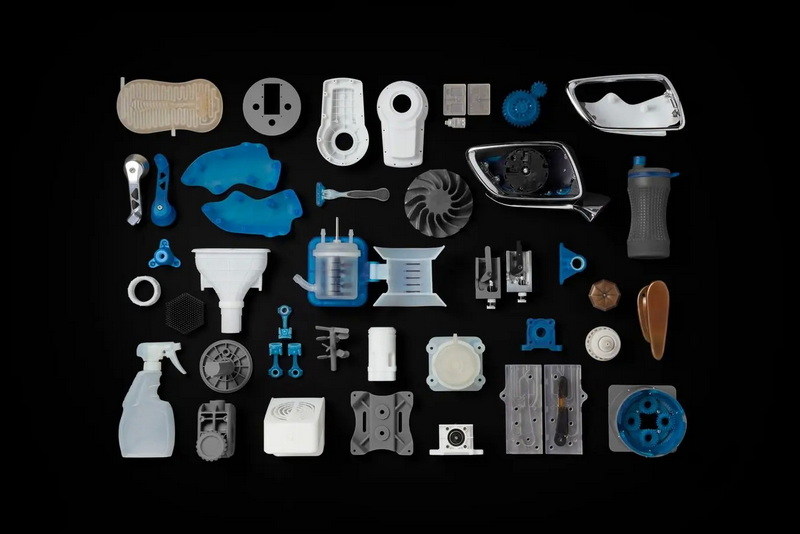

Rapid prototyping refers to a group of techniques used to quickly fabricate physical models using three-dimensional computer-aided design (CAD) data. Common rapid prototyping methods include CNC machining, 3D printing, sheet metal fabrication, and injection molding. These processes allow for the creation of prototypes in a matter of days, enabling fast evaluation and refinement.
- Accelerated Product Development: Rapid prototyping compresses the timeline from concept to functional prototype, enabling faster market entry.
- Cost Efficiency: Early detection of design flaws minimizes expensive changes in later stages.
- Enhanced Collaboration: Physical prototypes facilitate clearer communication among teams and stakeholders.
- Iterative Testing: Multiple design iterations can be produced and tested quickly, leading to better end products.
Design optimization is crucial for maximizing the advantages of rapid prototyping. Without proper optimization, prototypes may suffer from structural weaknesses, poor surface quality, or unnecessary production delays. Optimized designs ensure manufacturability, cost-effectiveness, and functional performance.
Choosing the right material is foundational to rapid prototyping success. Consider the following:
- Mechanical Properties: Match material strength, flexibility, and durability to your prototype's intended function.
- Process Compatibility: Ensure the material is suitable for the chosen prototyping method (e.g., certain plastics for 3D printing, metals for CNC machining).
- Cost and Availability: Balance performance with budget and lead time.
Selecting the correct material early in the design phase can prevent costly redesigns and delays. For example, if your prototype requires high heat resistance, choosing a standard polymer may lead to failure during testing. Conversely, selecting a high-performance material that is difficult to machine or print might increase production time and cost unnecessarily. Collaboration with your rapid prototyping partner can help identify the best material options tailored to your application.
Designing with manufacturability in mind ensures your prototype can be produced efficiently and accurately.
- Simplify Geometry: Avoid unnecessary complexity that could complicate manufacturing or increase costs.
- Standardize Features: Use standard hole sizes, threads, and fasteners where possible.
- Avoid Undercuts: Design parts to minimize or eliminate undercuts, which can complicate CNC machining and molding.
Incorporating design for manufacturability (DFM) principles early reduces the risk of production delays and cost overruns. For instance, sharp internal corners can cause stress concentrations and are difficult to machine; replacing them with fillets improves both strength and manufacturability. Also, designing symmetrical parts can reduce tooling complexity and simplify assembly.
Properly specified tolerances are essential for functional prototypes.
- Appropriate Tolerances: Avoid overly tight tolerances unless absolutely necessary, as they can increase production time and cost.
- Allow for Shrinkage: Account for material shrinkage, especially in processes like injection molding or certain 3D printing methods.
- Fit Types: Clearly define clearance, transition, or interference fits as required by the assembly.
Tolerance specification should balance precision with practicality. Overly tight tolerances can lead to increased scrap rates and longer lead times. Conversely, loose tolerances might cause poor fit or function. Understanding the capabilities of your chosen rapid prototyping process will guide appropriate tolerance settings.
Complex designs often lead to longer lead times and higher costs.
- Reduce Part Count: Consolidate multiple components into a single part where feasible.
- Design for Assembly: Consider how parts will be assembled post-production; design features that simplify alignment and joining.
- Modular Design: Use modularity to facilitate easier updates and replacements.
Reducing complexity not only speeds up prototyping but also improves reliability and reduces assembly errors. For example, integrating snap-fit joints reduces the need for screws and adhesives, streamlining assembly and disassembly. Modular designs allow for easier iteration on individual components without redesigning the entire assembly.
Consider assembly and finishing requirements early in the design phase.
- Snap-Fit Features: Integrate snap-fits or interlocking features to reduce the need for fasteners.
- Surface Finish: Specify surface finish requirements based on prototype needs—functional testing may require less finishing than a display model.
- Post-Processing Needs: Plan for any necessary post-processing such as painting, polishing, or heat treatment.
Designing with assembly and post-processing in mind can significantly reduce total project time. For instance, parts designed for easy snap-fit assembly can be put together quickly without tools, saving labor costs. Additionally, specifying surface finishes appropriate to the prototype's purpose can avoid unnecessary polishing or coating steps.
With the growing use of 3D printing in rapid prototyping, understanding Design for Additive Manufacturing (DfAM) principles is critical.
- Optimize Support Structures: Design parts to minimize the need for support material, which reduces print time and post-processing.
- Leverage Complex Geometries: Take advantage of additive manufacturing's ability to produce complex internal channels, lattice structures, and organic shapes that are impossible or costly with traditional methods.
- Consider Layer Orientation: Design with the printing orientation in mind to improve strength and surface finish where needed.
DfAM enables designers to push the boundaries of innovation while maintaining manufacturability and cost-effectiveness. For example, lightweight lattice structures can reduce material usage and weight without compromising strength, ideal for aerospace or automotive prototypes.
Before physical prototyping, use simulation tools to validate your design.
- Stress Analysis: Identify potential weak points and optimize geometry accordingly.
- Thermal Simulation: Predict how your prototype will behave under heat.
- Motion and Kinematic Simulation: Ensure moving parts function as intended.
Simulation reduces the number of physical iterations, saving time and money. It also helps catch design flaws early, improving the overall quality of the prototype.
Effective communication between designers and rapid prototyping manufacturers is essential.
- Share Detailed CAD Files: Provide complete and accurate 3D models with annotations.
- Discuss Material and Process Constraints: Engage in dialogue about material options, lead times, and process capabilities.
- Request Feedback: Manufacturers can offer valuable insights to improve design for manufacturability.
Building a strong partnership with your rapid prototyping provider ensures smoother production and better outcomes.
- Cross-Functional Teams: Involve engineers, designers, and manufacturers early to identify potential challenges.
- Iterative Feedback Loops: Use each prototype iteration to gather feedback and refine the design.
- Digital Collaboration Tools: Utilize CAD and simulation software to visualize and optimize designs before prototyping.
1. Concept Development: Generate initial ideas and sketches.
2. 3D Modeling: Create detailed CAD models.
3. Design Review: Evaluate design for manufacturability and function.
4. Prototype Fabrication: Produce the prototype using the selected rapid prototyping method.
5. Testing and Validation: Assess performance, fit, and aesthetics.
6. Iteration: Refine the design based on test results and repeat as needed.
Following a structured workflow helps maintain project momentum and ensures that prototypes meet expectations at every stage.
- Ignoring Manufacturing Constraints: Designs that overlook process limitations often lead to delays or failed prototypes.
- Over-Specifying Tolerances: Unnecessarily tight tolerances increase costs and production time.
- Neglecting Material Properties: Using the wrong material can compromise prototype function and durability.
- Lack of Clear Communication: Incomplete or ambiguous design documentation leads to errors and rework.
- Skipping Iterations: Rushing to final production without sufficient prototyping increases the risk of costly mistakes.
Avoiding these mistakes will improve your rapid prototyping outcomes and reduce wasted resources.
Optimizing your design for rapid prototyping is essential for accelerating product development, reducing costs, and ensuring functional success. By focusing on material selection, manufacturability, tolerance management, and assembly considerations, you can maximize the benefits of rapid prototyping. Incorporating advanced strategies such as Design for Additive Manufacturing, simulation, and strong collaboration with manufacturers further enhances your ability to create high-quality prototypes efficiently. Integrating these best practices into your workflow will help you bring innovative products to market faster and more efficiently.
The most important factor is ensuring your design is manufacturable with the chosen rapid prototyping process. This includes selecting appropriate materials, simplifying geometry, and specifying realistic tolerances.
Consider your prototype's purpose (functional testing, fit, aesthetics), required material properties, complexity, and budget. Discuss options with your manufacturing partner to select the most suitable method.
Common pitfalls include ignoring manufacturing constraints, over-specifying tolerances, neglecting material properties, and failing to iterate based on prototype feedback.
Most projects require several iterations—typically three to five—to refine the design and address functional or aesthetic issues before moving to final production.
Advancements in materials and processes now allow rapid prototyping to produce not only prototypes but also low-volume, end-use parts, especially for specialized or customized applications.
